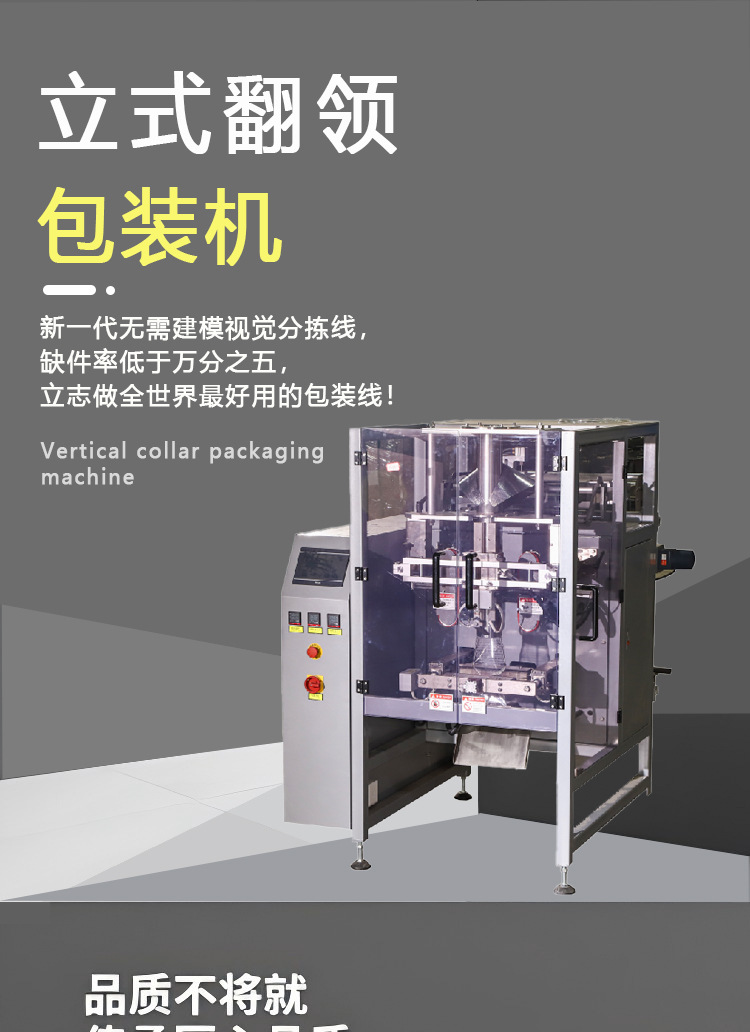

Vertical Lapel Packaging Machine
VB-04-010
1. 7" touch screen – intuitive, one-glance operation.

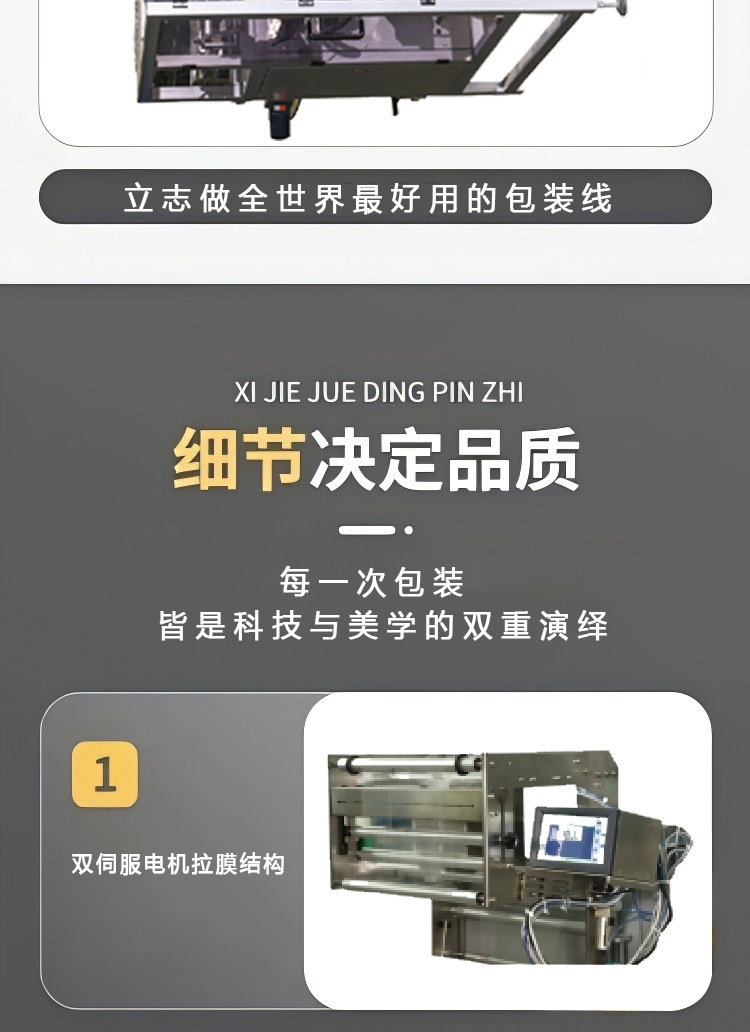

2. Dual-servo film-pulling module eliminates most mechanics, cutting maintenance.
3. Servo sealing unit (no air-cylinders) further lowers service cost.

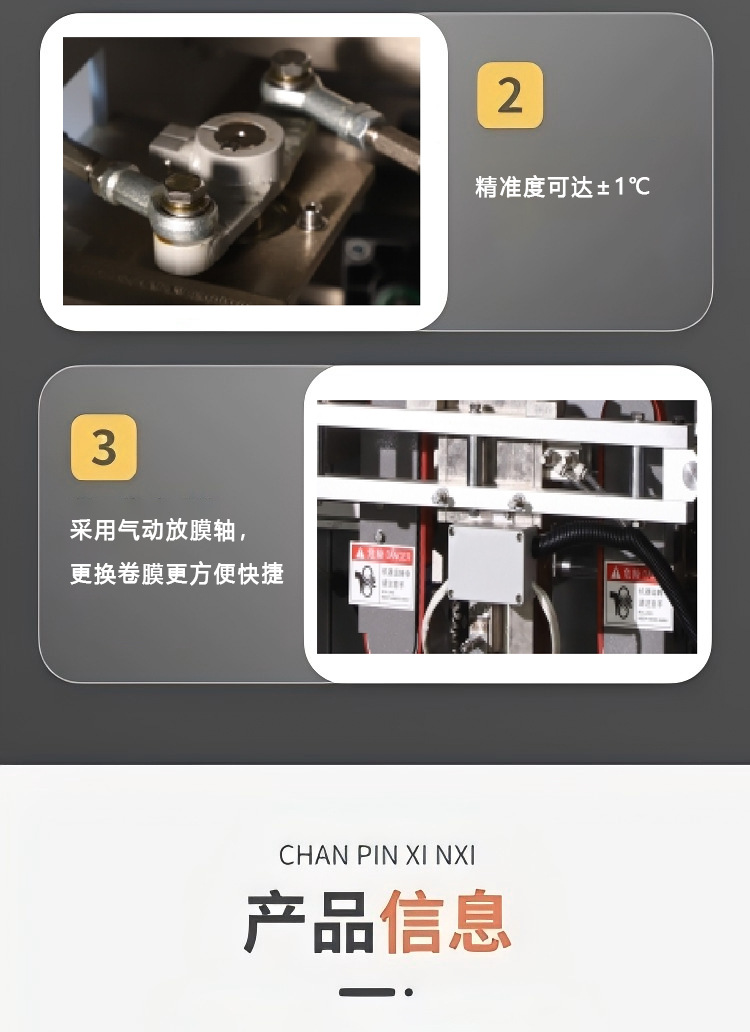

4. Independent PID temperature control for transverse & longitudinal seals, accuracy ±1 °C.
5. Factory-fitted: 3 mm hole punch, photo sensor, pneumatic coder; optional thermal printer.
6. Air-actuated film shaft lets operators change film rolls in seconds.
|

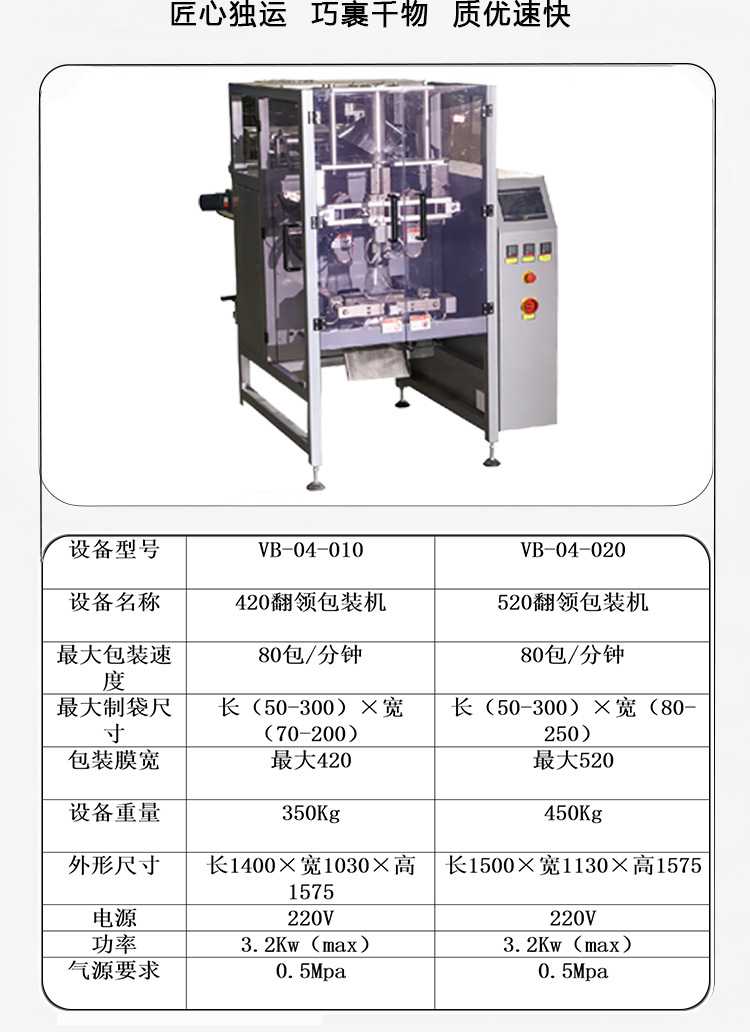

Equipment Model |
VB-04-010 |
VB-04-020 |
|
Device Name |
420 Lapel packaging machine |
520 Lapel packaging machine |
|
Maximum Packaging Speed |
80 packs per minute |
80 packs per minute |
|
Maximum Bag-Making Size |
Length (50-300) × Width (70-200） |
Length（50-300）×Width （80-250） |
|
Packaging Film Width |
Maximum 420 |
Maximum 520 |
|
Equipment Weight |
350Kg |
450Kg |
|
Overall Dimensions |
Length: |
Length 1500× Width 1130× height 1575 |
|
Power Supply |
220V |
220V |
|
Power |
3.2Kw（max） |
3.2Kw（max） |
|
Gas Source Requirements |
0.5Mpa |
0.5Mpa |

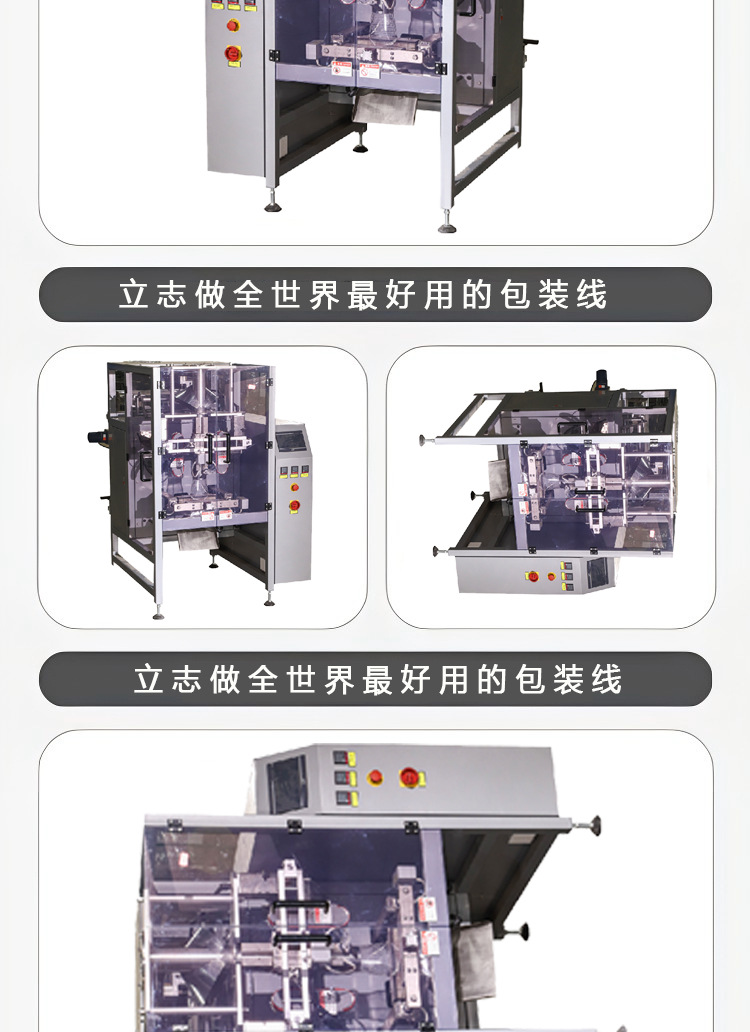

Vertical Lapel Packaging Machine
The Packaging Speed Can Reach Up To 80 Packs Per Minute
- 介绍
- 参数
- 视频
- 案例
- 下载
|
Equipment Model |
VB-04-010 |
VB-04-020 |
|
Device Name |
420 Lapel packaging machine |
520 Lapel packaging machine |
|
Maximum Packaging Speed |
80 packs per minute |
80 packs per minute |
|
Maximum Bag-Making Size |
Length (50-300) × Width (70-200） |
Length（50-300）×Width （80-250） |
|
Packaging Film Width |
Maximum 420 |
Maximum 520 |
|
Equipment Weight |
350Kg |
450Kg |
|
Overall Dimensions |
Length: |
Length 1500× Width 1130× height 1575 |
|
Power Supply |
220V |
220V |
|
Power |
3.2Kw（max） |
3.2Kw（max） |
|
Gas Source Requirements |
0.5Mpa |
0.5Mpa |
